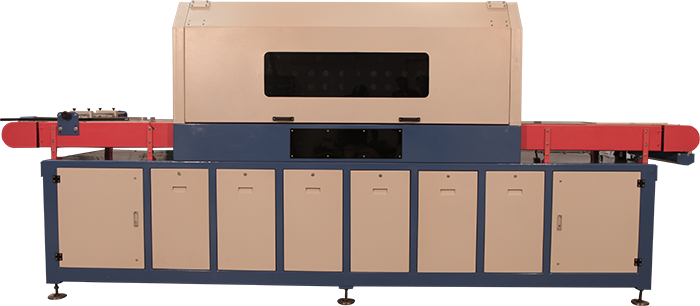

Digital Printing Machine For Cermic Tiles
 /

• Print width 350 to Max 1050

• Mechanical Resolution 360 x 360 dpi

• Using Xaar - 1001 GS - 6 & GS-12 Print Head

Mod
Printing
Overall Dimension (LxWxH) (mm)
Weight
350-4 350-5 420-4 420-5 700-4 700-5 1050-4 1050-5
50x50 mm--345x1500 mm 50x50 mm--415x1500 mm 50x50 mm--695x1500 mm 50x50 mm--1040x1500 mm
4730x1650x1900 5530x1650x1900 4730x1650x1900 5530x1650x1900 4730x1650x1900 5530x1650x1900 4730x1650x1900 5530x1650x1900
2300 2600 2300 2600 2300 2600 3000 3000
High Printing Precision/High Production Efficiency :
Print Precision 360dpi, 8 grey Levels option, delicate pattern, Non-contact printing with adobe, ensure that tiles are not damaged, to crate fine ceramic with high quality.
Graphic design only, no plate charges, printable personalized design, very convenient to change printig size.
Completely well equipped with four operation modes, including positioning style, puzzle-type, interval type, random type printing, to make abundant print colors of products.
Stable Performance/High Humanization :
Combinationfor 4-6 Color, rich color.
UK Xaar 1001 print head with high print precision, other circulation available.
Independent design of each color, automatic vacuum cleaning and adjustable ventilation system can effectively reduce print head clogging.
With failure sensing systems, easy to operate and maintain.
Technical Parameters :
1. Print Head Technology Xaar 1001 Gs-6 / Xaar 1001 Gs-12 7. Color Control International standard ICC color control
2. Printing Speed 0-24m/min 8. File Format TIF, PRT
3. Grey Scale available 8 grey lavels 9. Media Thickness < 40 mm
4. Print Precision 360dpi 10.Data Interface Gigabit ethernet
5.Inkjet Technlogy Piezoelectric inkjet printing (Low Valtage) 11.Operating Environment 200 C - 250 C
6.Color Configration 4-6 color options 12.Working Height from ground to the Platform 1050 ± 50mm
Machine Parameters :
1. Power 380V AC/three-phase ± 10%, 50/60HZ 2. Installed Power 8KW
